GROUND FACE CONCRETE MASONRY

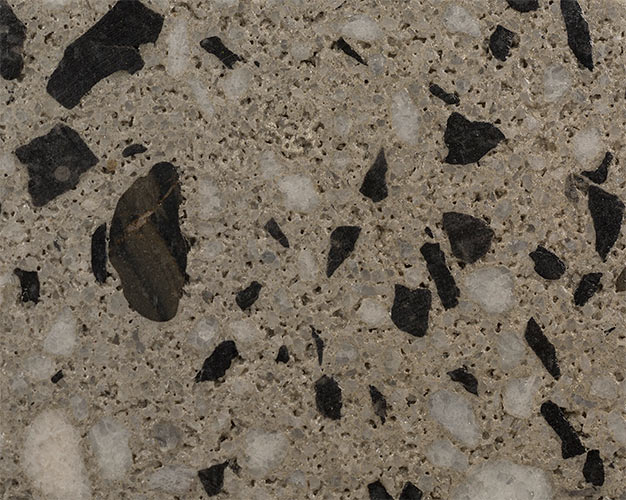

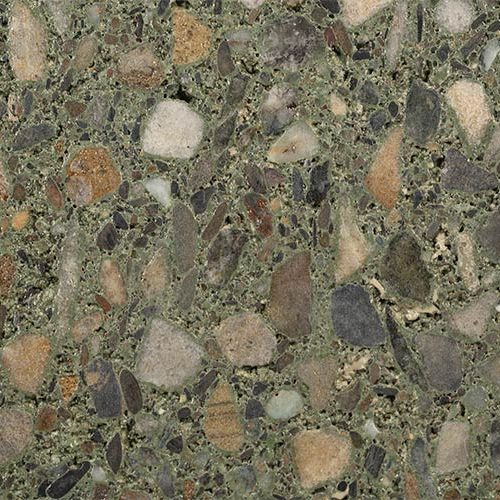

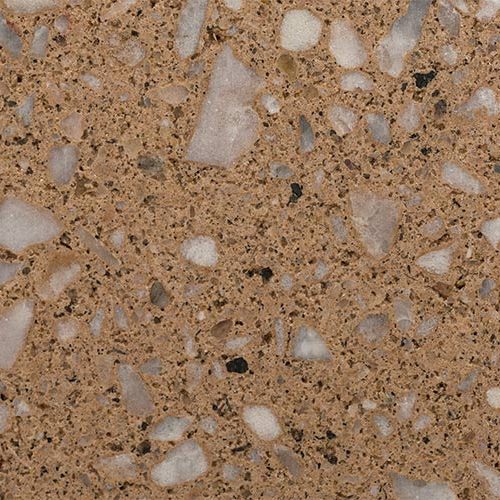

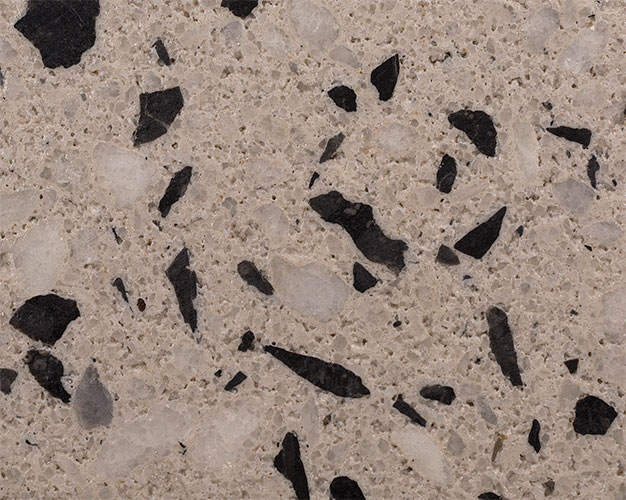

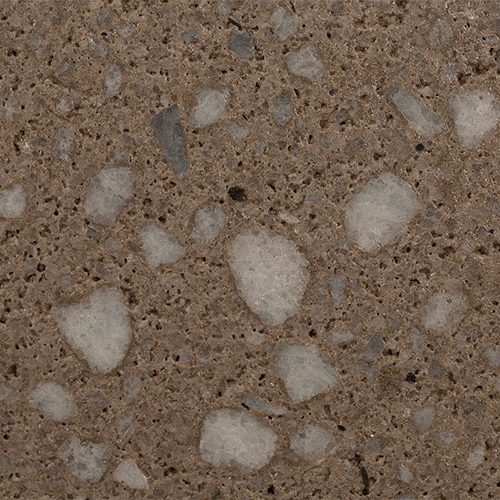

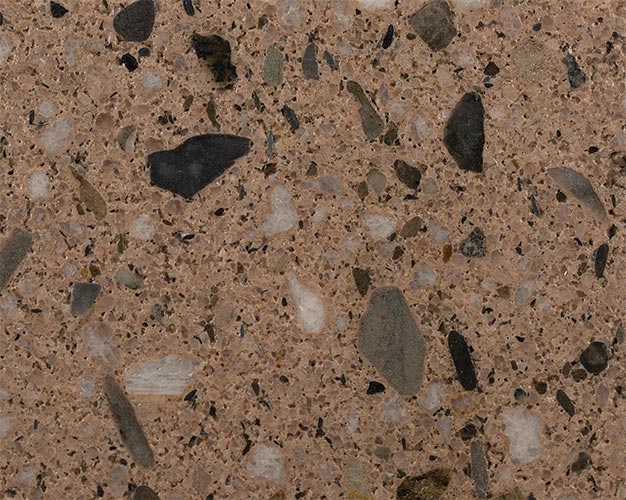

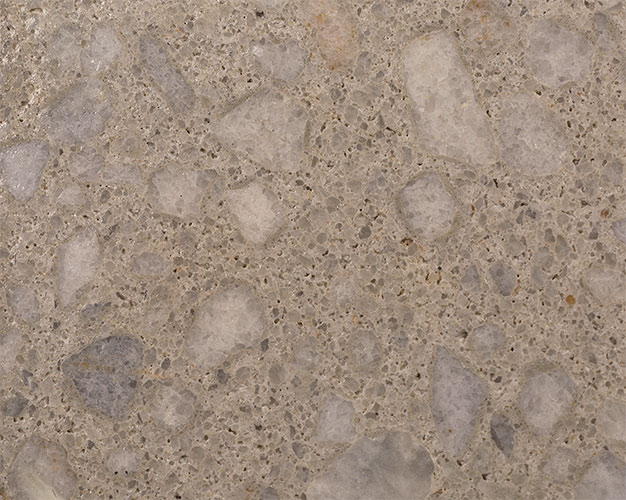

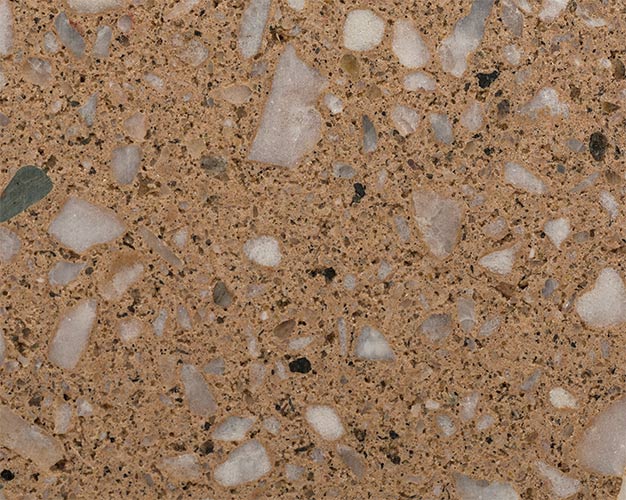

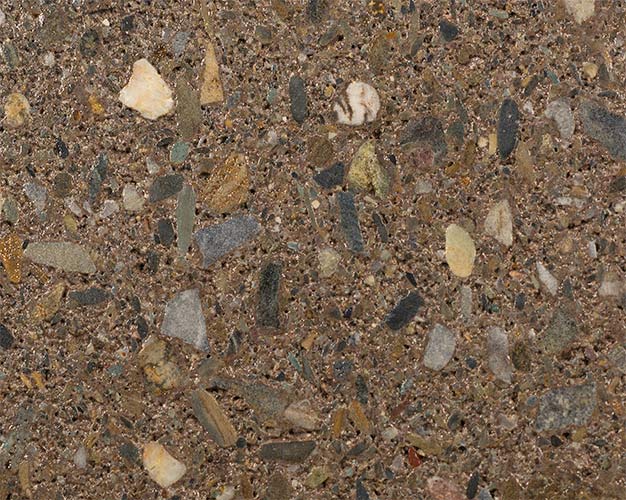

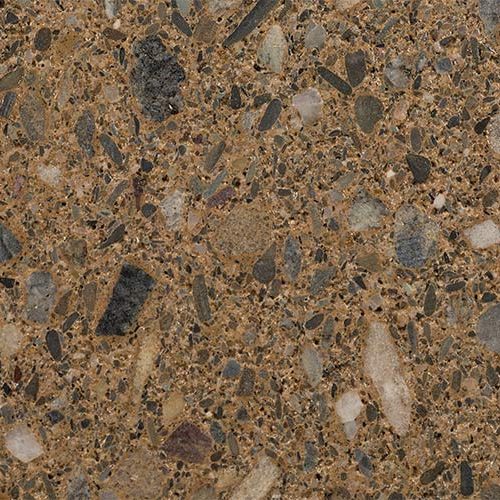

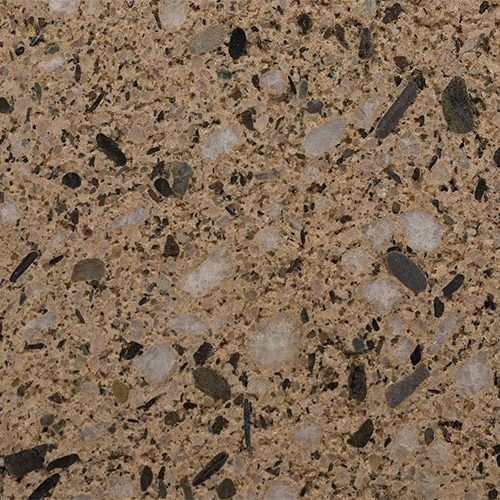

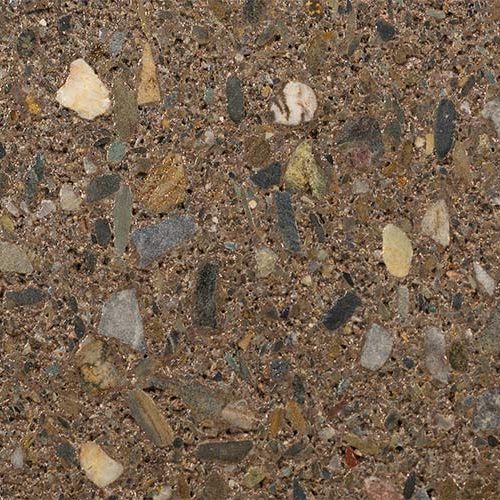

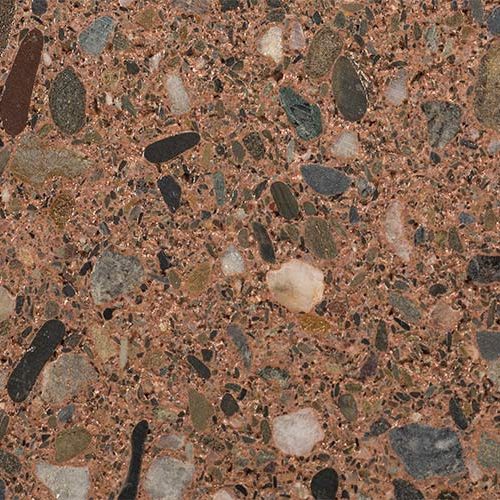

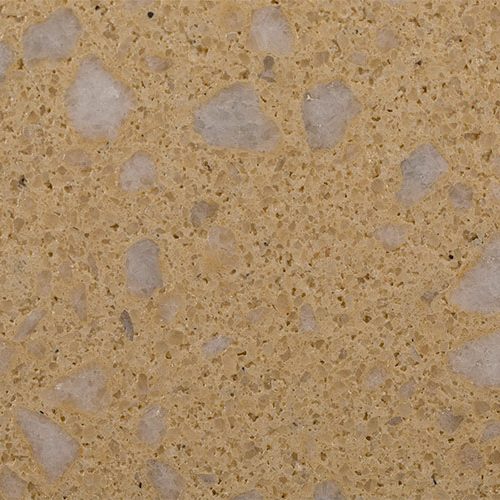

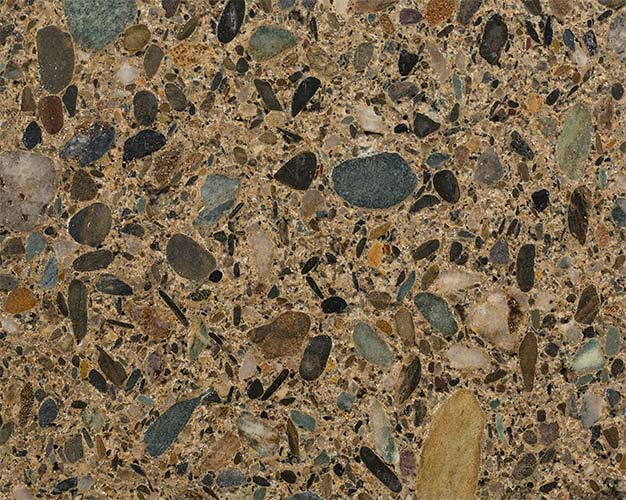

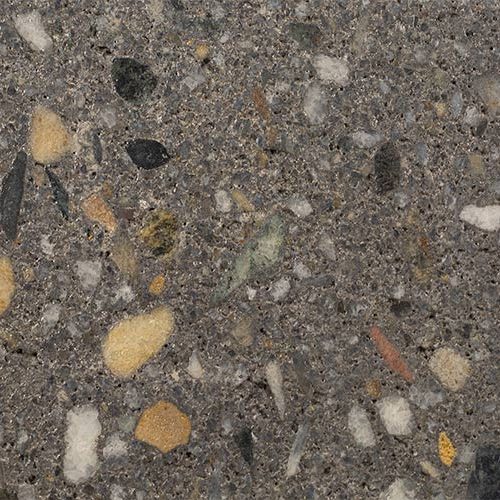

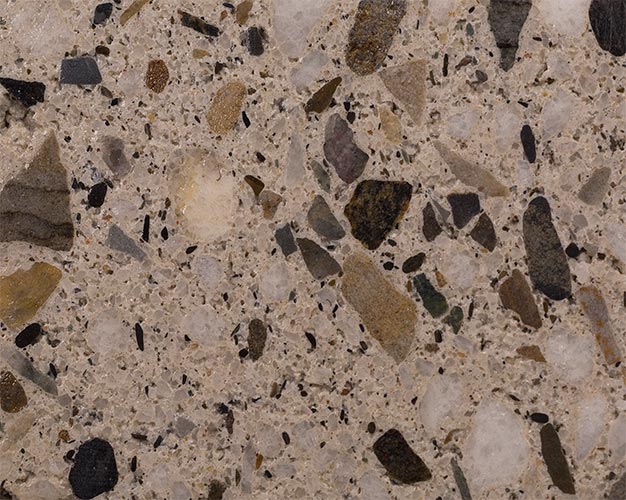

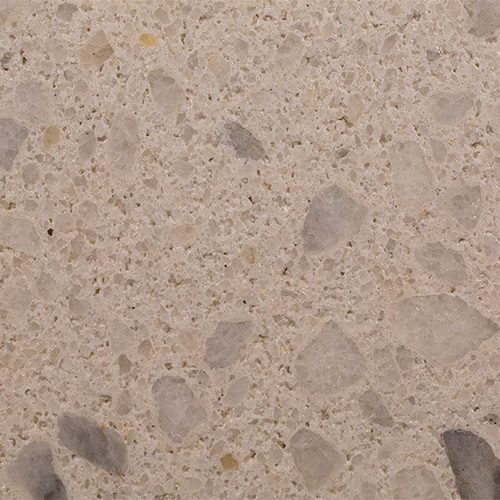

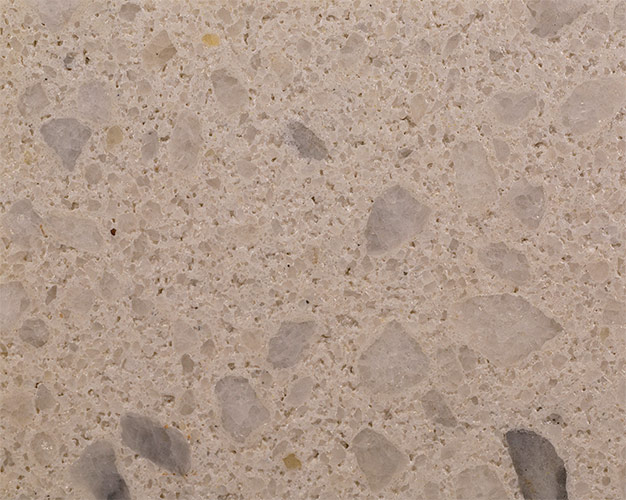

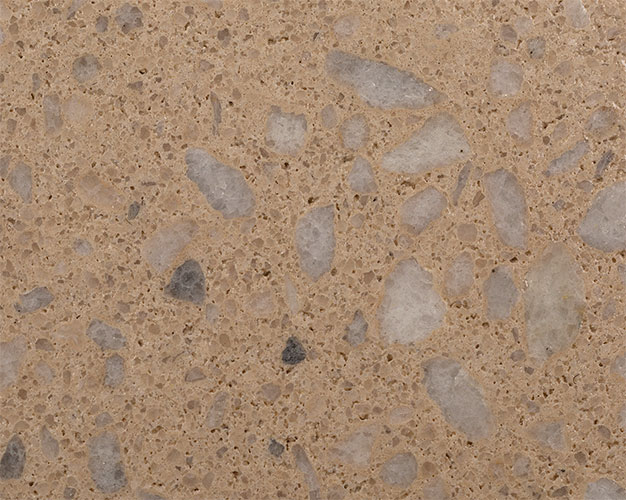

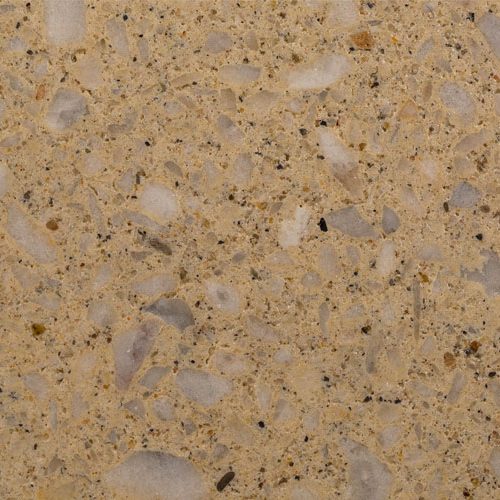

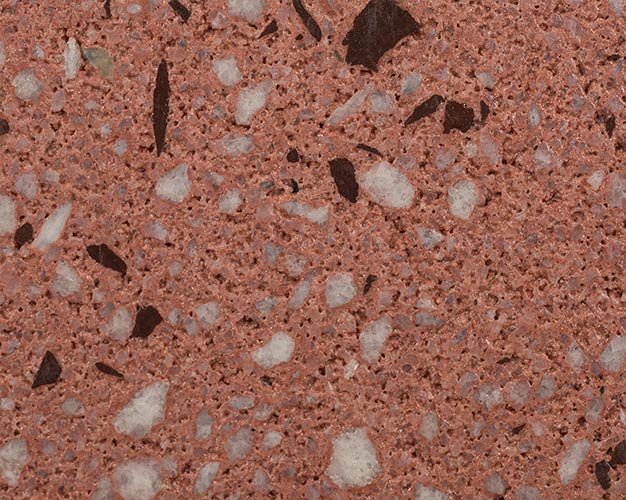

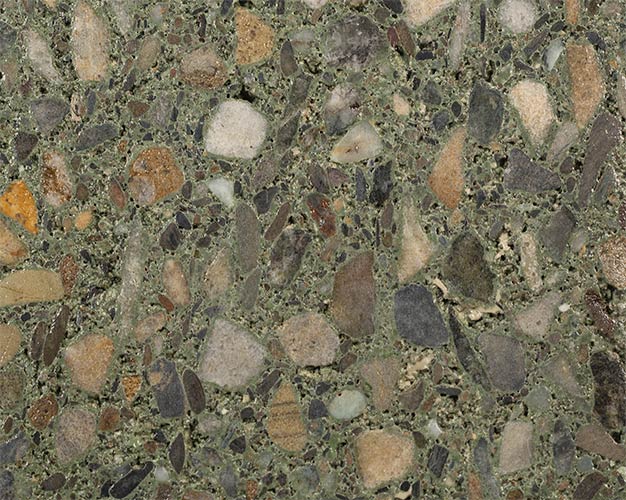

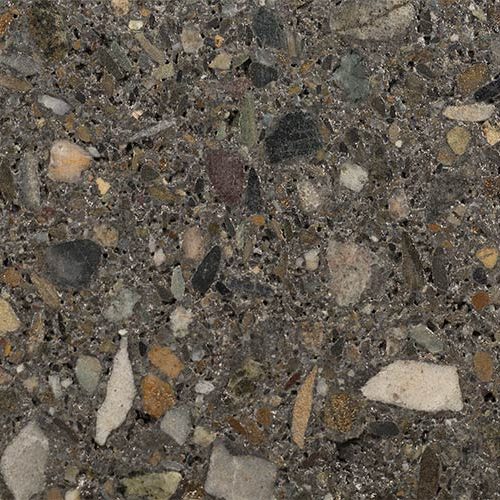

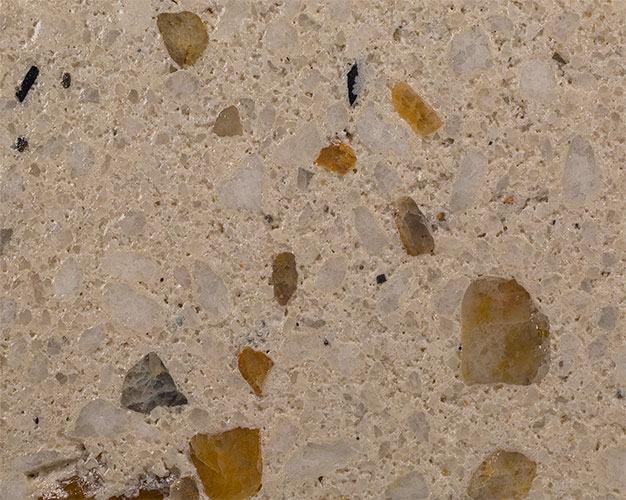

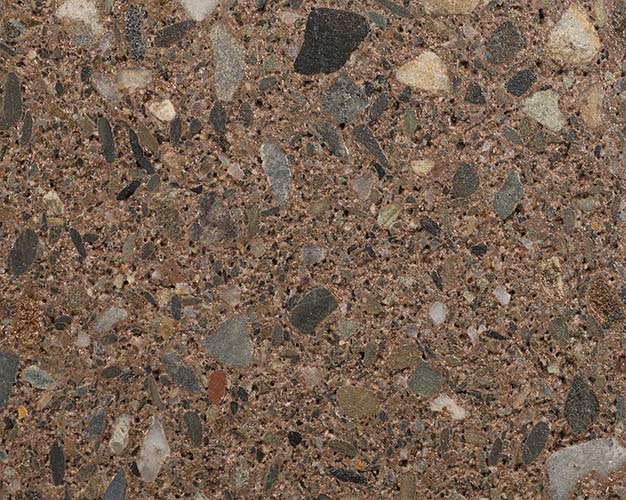

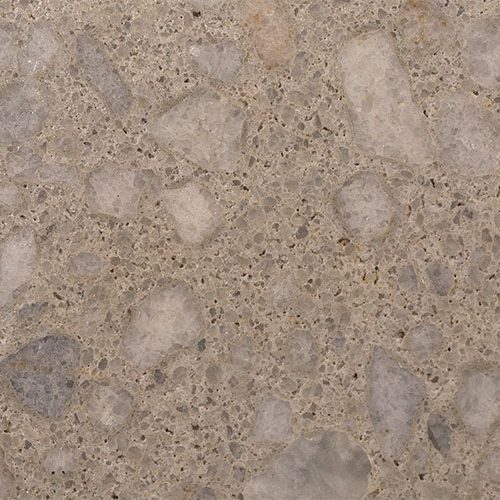

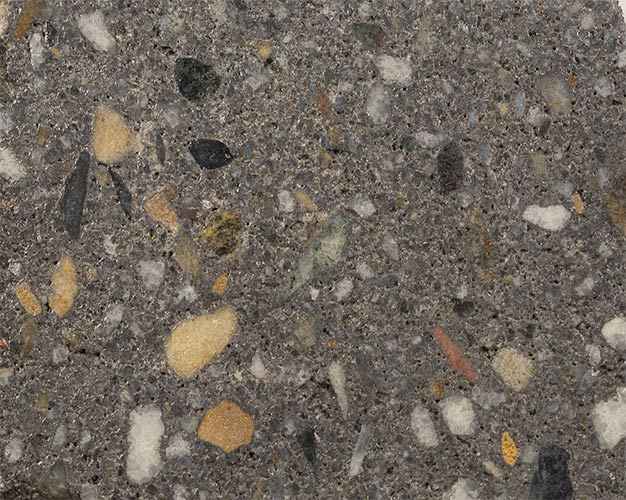

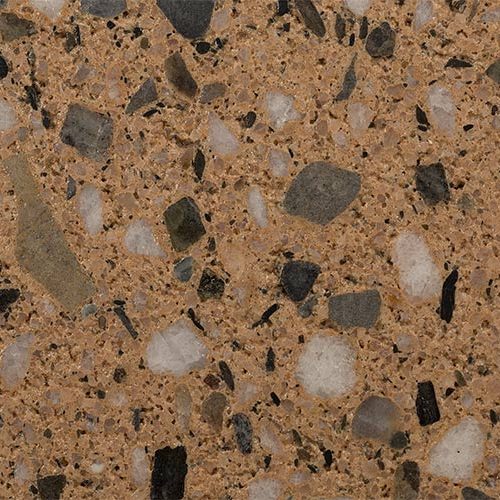

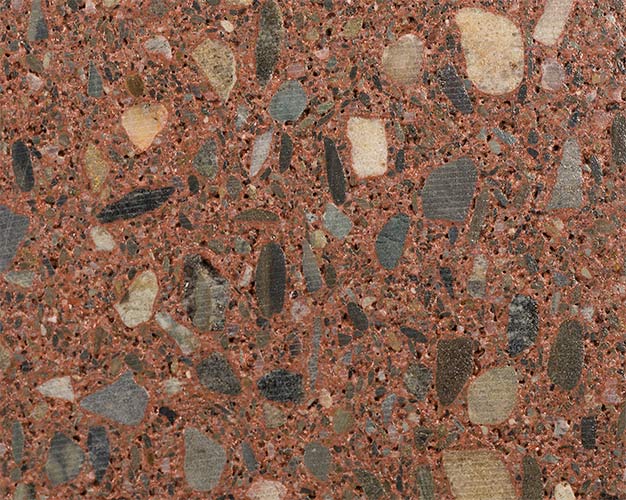

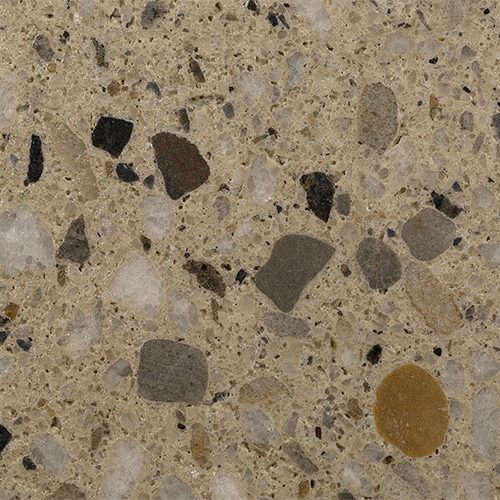

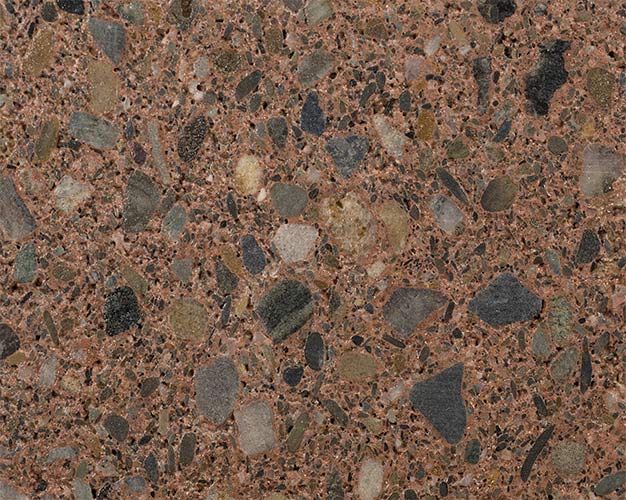

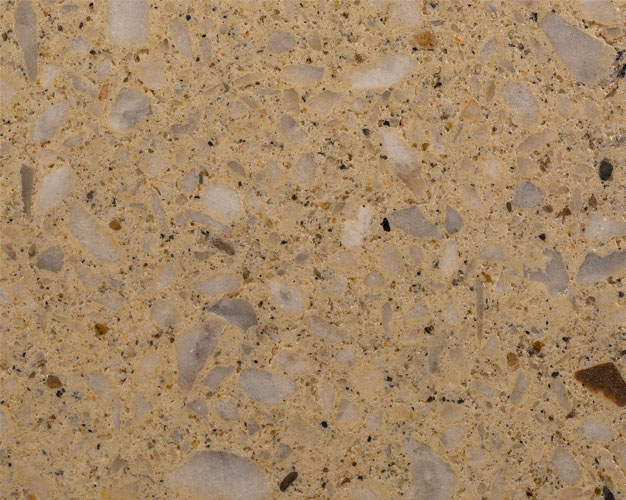

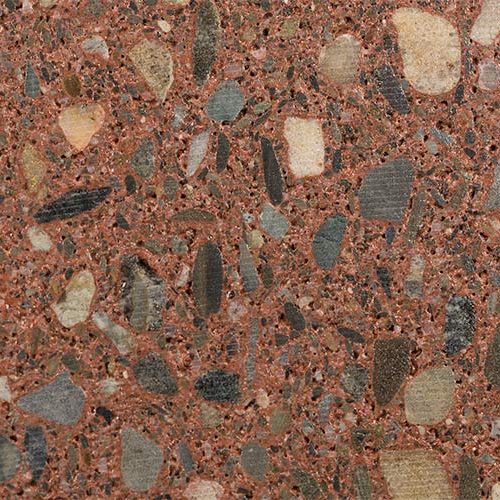

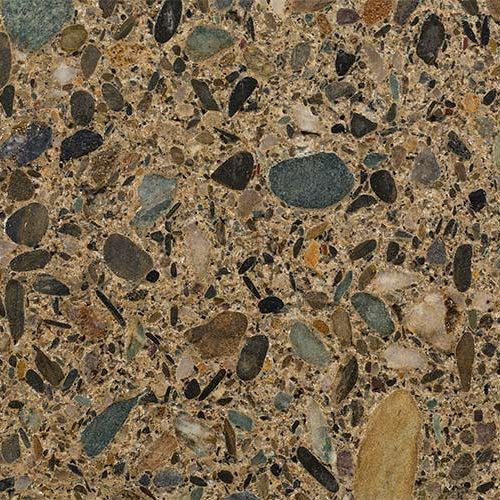

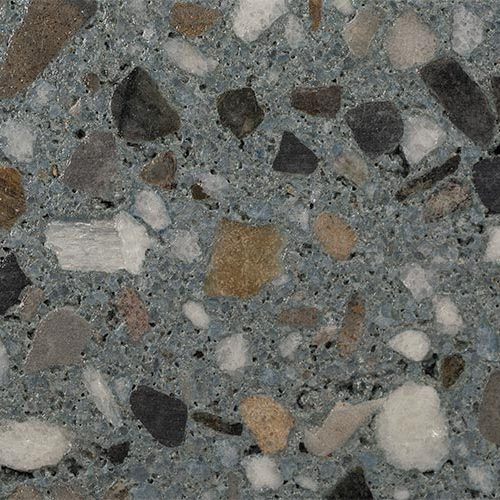

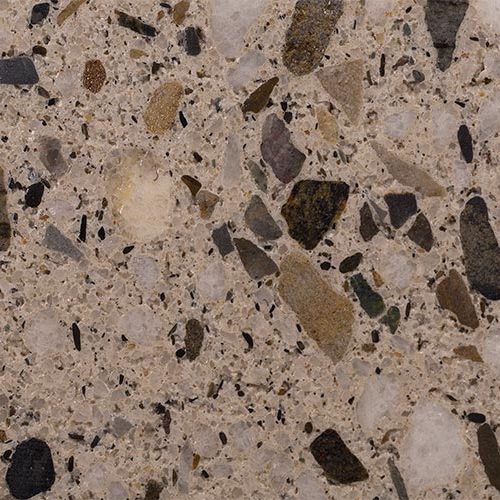

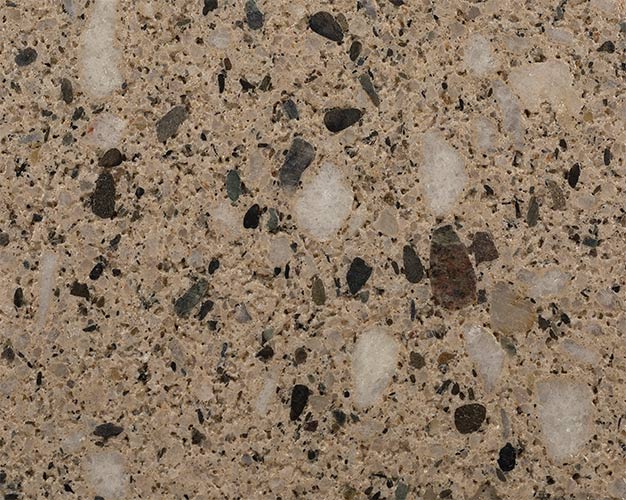

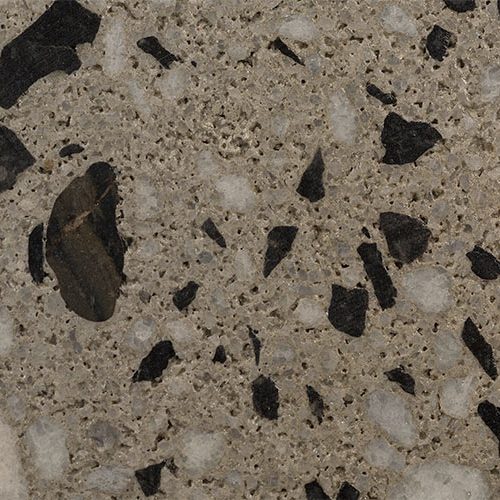

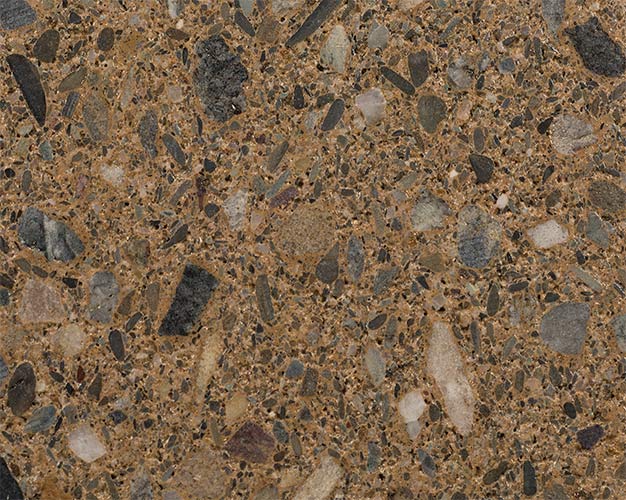

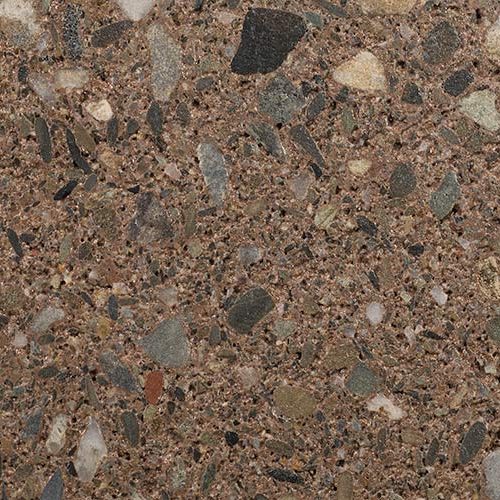

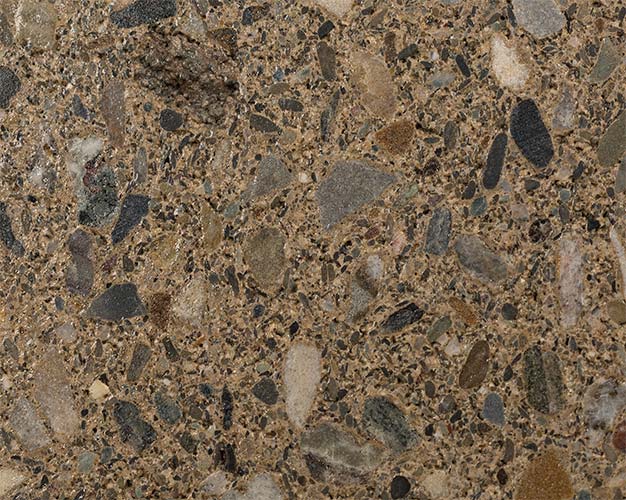

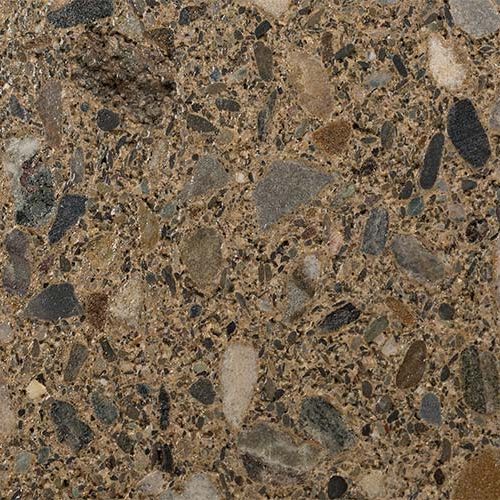

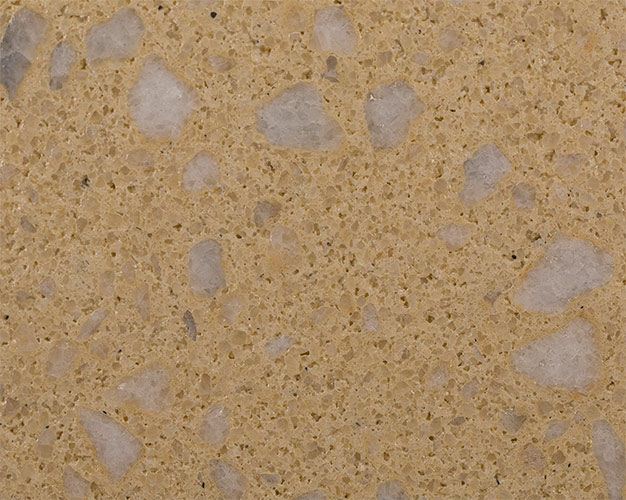

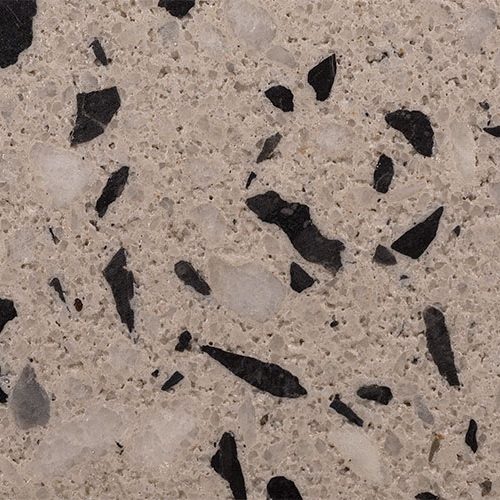

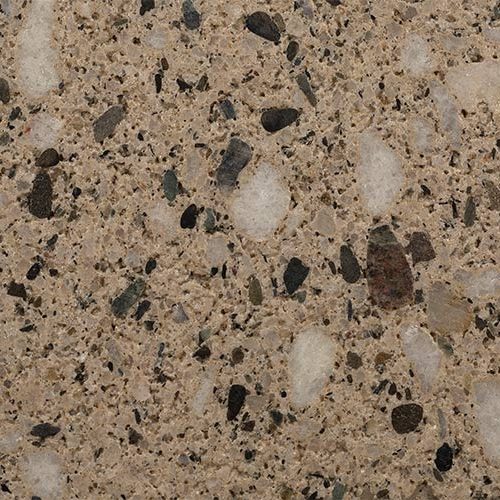

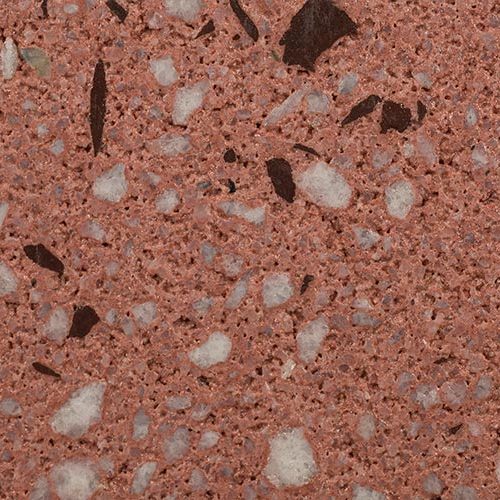

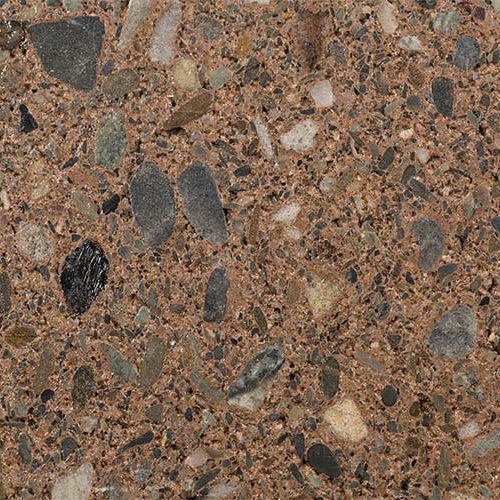

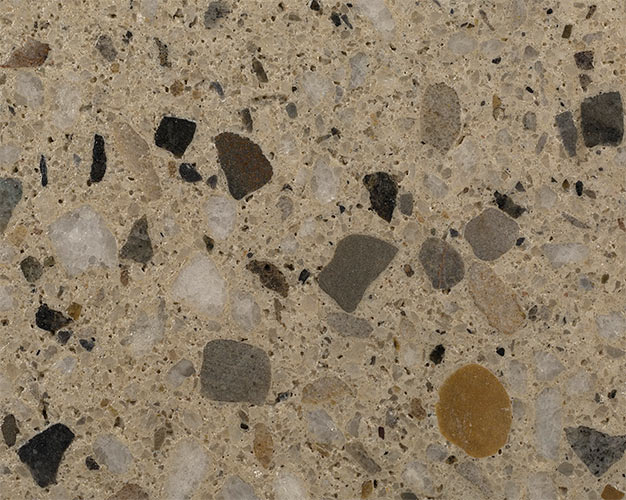

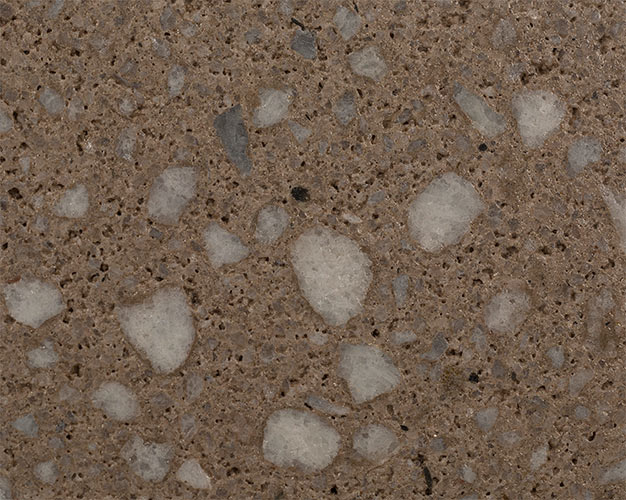

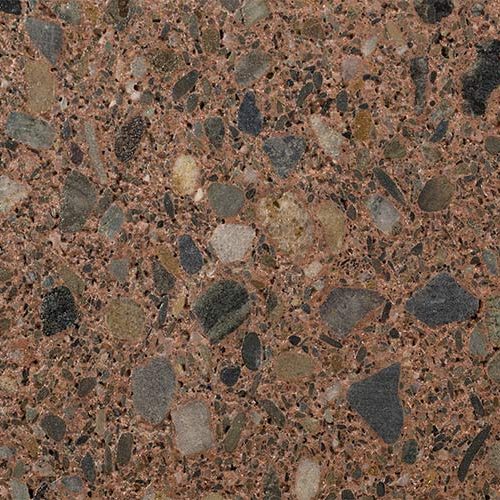

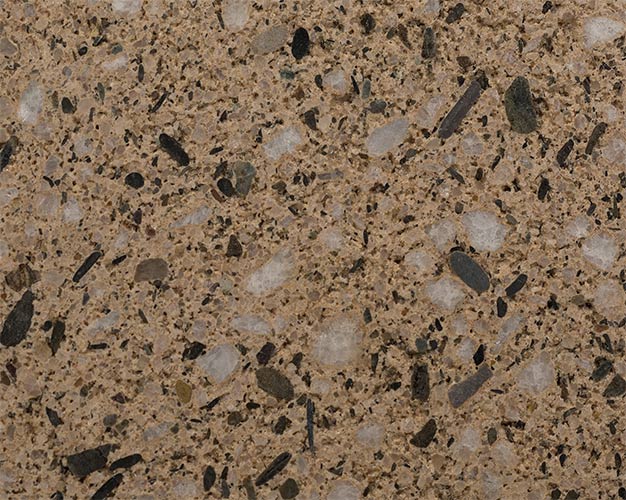

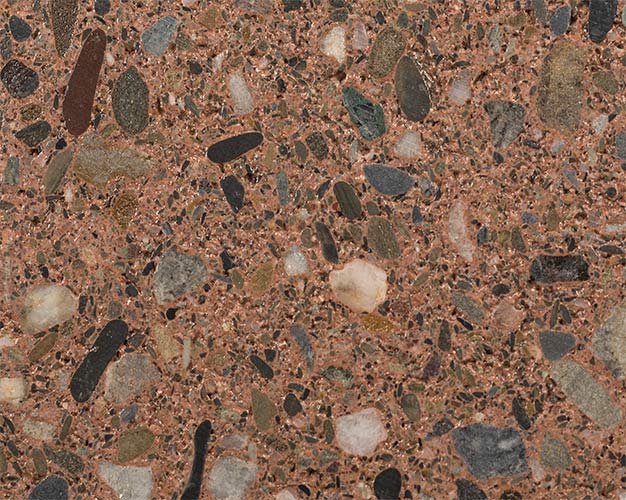

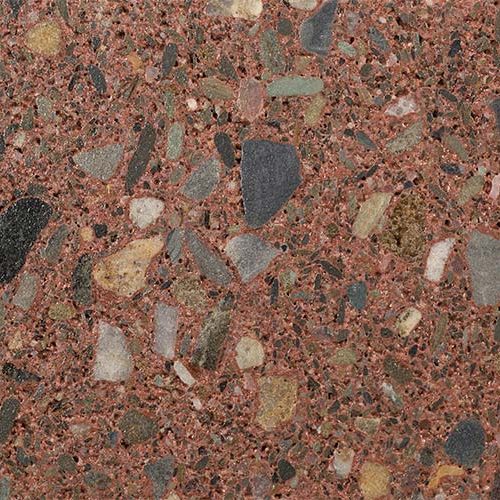

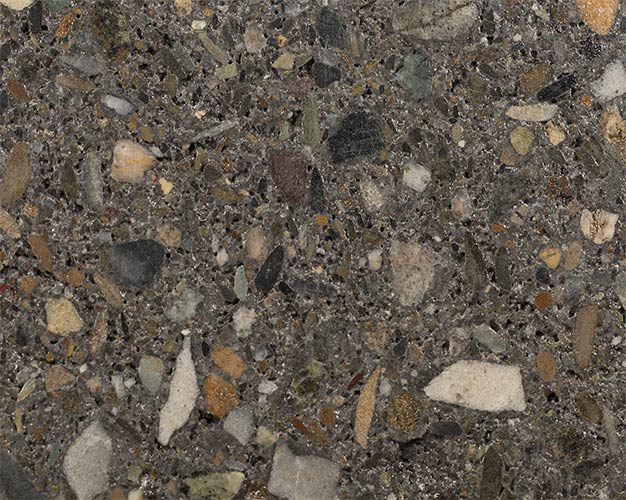

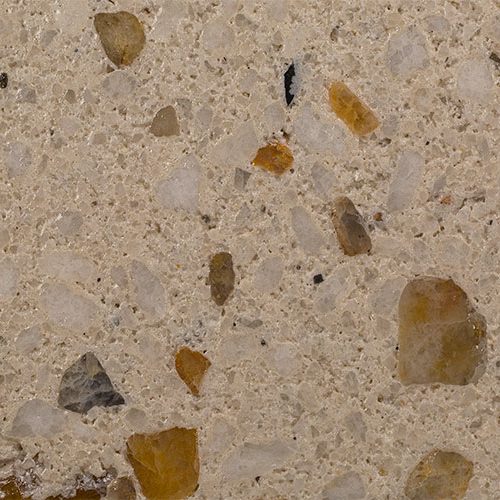

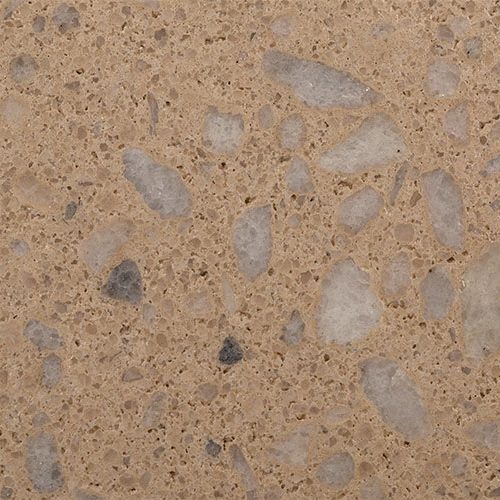

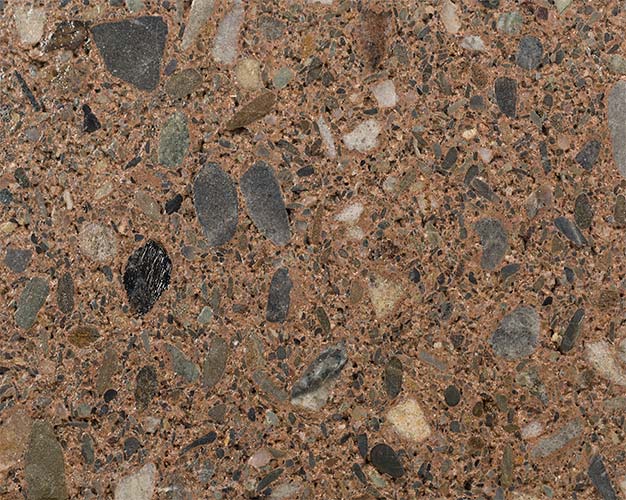

Zappala Ground Face Block has one or more faces ground exposing the unique beauty of the Integral color and natural aggregates.

Our Ground Face block can be manufactured with endless combinations of cements, color pigments and aggregates giving ultimate flexibility to design professionals. Our state of the art grinding operation gives us the ability to provide beautiful flawless surfaces that will enhance any project.

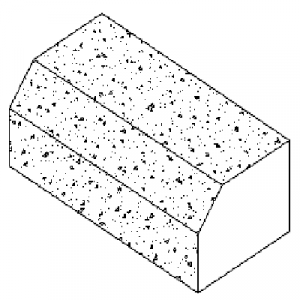

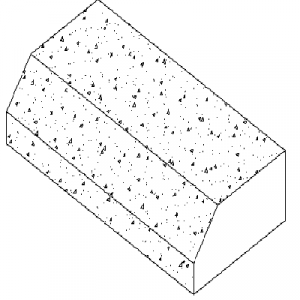

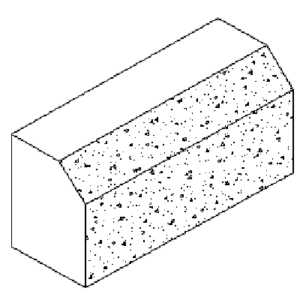

Zappala Ground Face units are available in a variety of colors, chamfers, sills, scoring patterns as well as special shapes.

Our Architectural Concrete Masonry units exceed ASTM-C90 standard specification for loadbearing concrete masonry units.

Fire resistance, mold and mildew resistance, sustainability and the ability to meet or exceed requirements for LEED® construction materials are all met with Zappala’s finest masonry products.

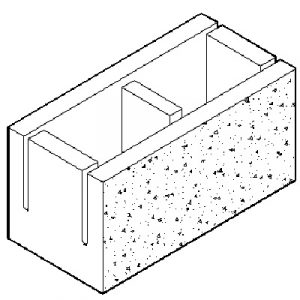

STANDARD

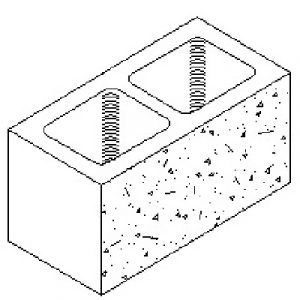

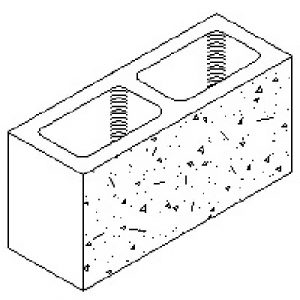

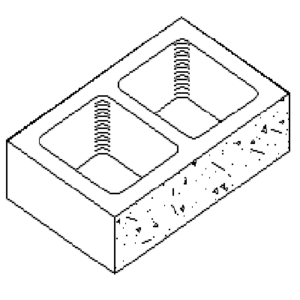

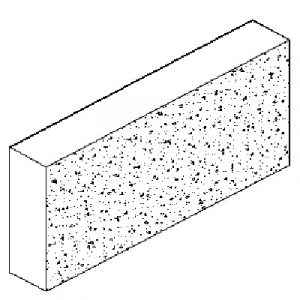

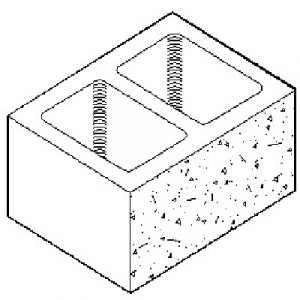

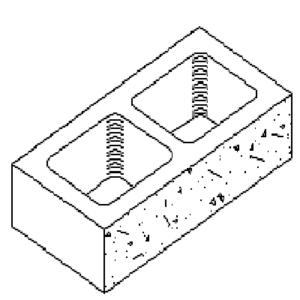

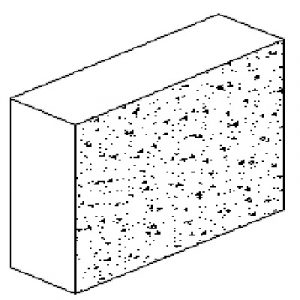

Ground Face
4″ x 8″ x 16″

Ground Face
6” x 8” x 16”

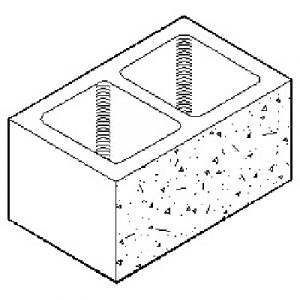

Ground Face
8” x 8” x 16”

Ground Face
10″ x 8” x 16”

Ground Face
12” x 8” x 16”

Ground Face
KO BBeam
6″,8″,10″,& 12″ widths

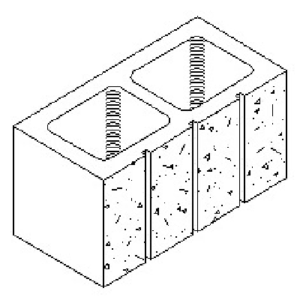

SCORED

1/2 High SScore
4″ x 4″ x 16″

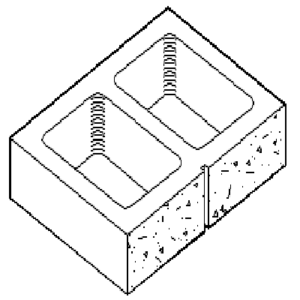

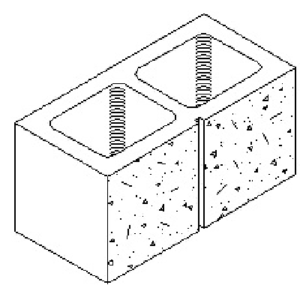

Single Score
8” x 8” x 16”

3 Score
8” x 8” x 16”

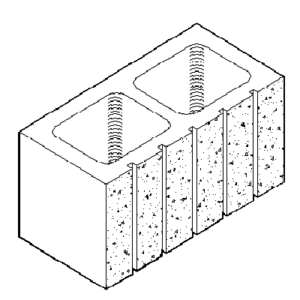

5 Score
8″ x 8” x 16”




all available in 4″, 6″, 8″, 10″, 12″ wide

1/2 HIGH

1/2 High Ground
4″ x 4″ x 16″

1/2 High Ground
8” x 4” x 16”

1/2 High Ground
10” x 4” x 16”

SScore 1/2 High
12″ x 4” x 16”

CORNERS

Ground Face Corner
4″ x 16″ 1F+1E

Ground Face Corner
4” x 8” x 12”

Ground Face Corner
8” x 8” x 16”

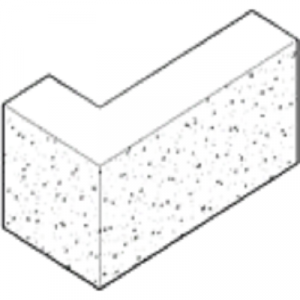

Ground Face “L” Corner
4″ x 8” x 16”

BULLNOSE

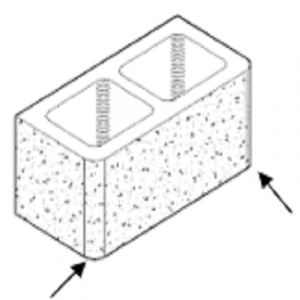

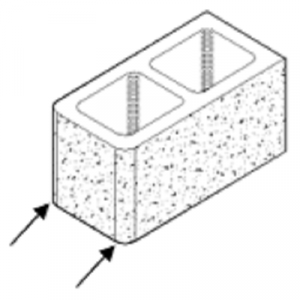

Single Bullnose
one end
8″ x 8″ x 16″

Single Bullnose
each end
8” x 8” x 16”

Double Bullnose
one end
8” x 8” x 16”

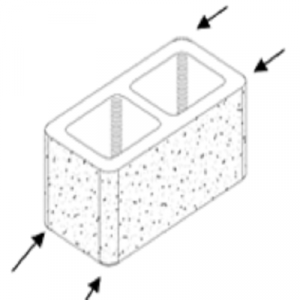

Quad Bullnose
all 4 ends
8″ x 8” x 16”



all available in 4″, 6″, 8″, 10″, 12″ wide

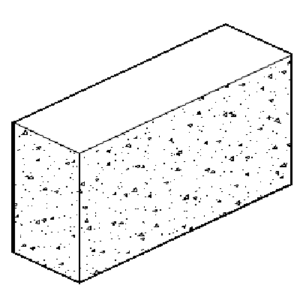

OVERSIZE

Ground Face
4″ x 4″ x 24″

Ground Face
4” x 8” x 24″

Ground Face
4” x 12” x 12”

Ground Face
4″ x 12” x 24”

Ground Face
4″ x 16″ x 16″

Ground Face
4″ x 16″ x 24″

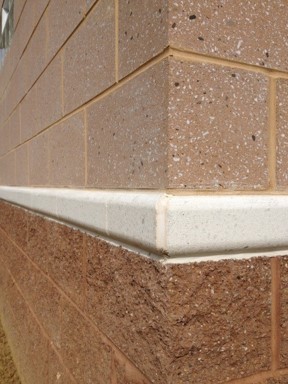

SILL PROFILES

Ground Face Sill
4″ x 8″ x 16″

Ground Face Sill
6” x 8” x 16″

Ground Face Sill
8” x 4” x 16”

Ground Face Sill
8″ x 6” x 16”

Ground Face Sill
4″ x 8″ x 24″

Ground Face Sill
Water Table

4″ x 16″ x 24″

TECHNICAL INFORMATION
